Steps
GRADA

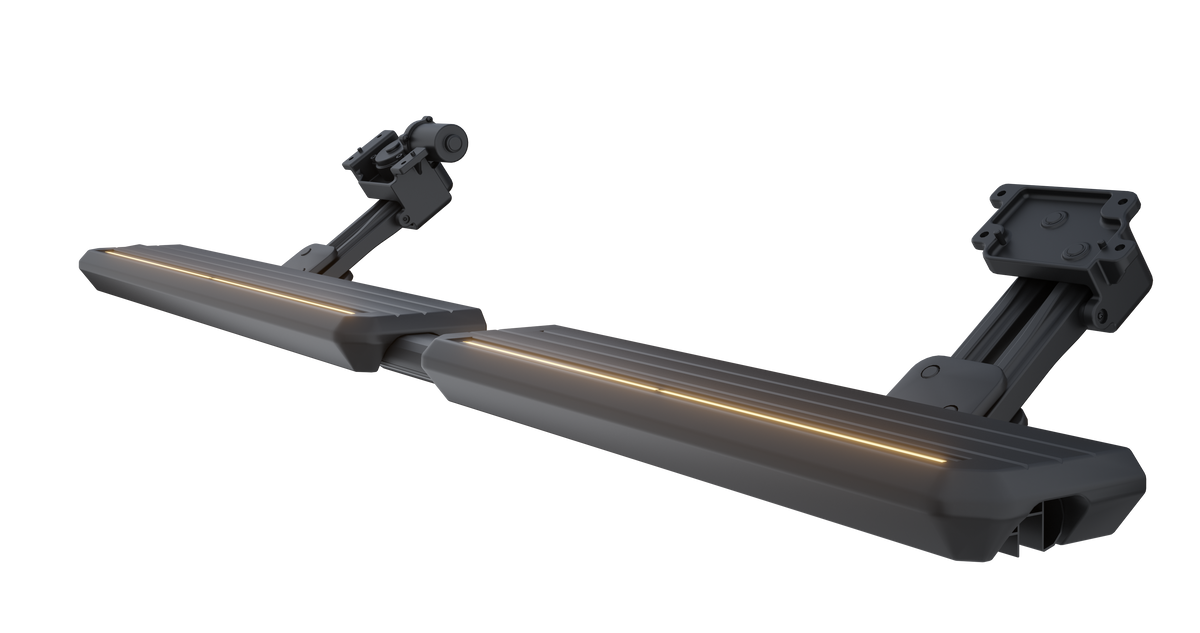

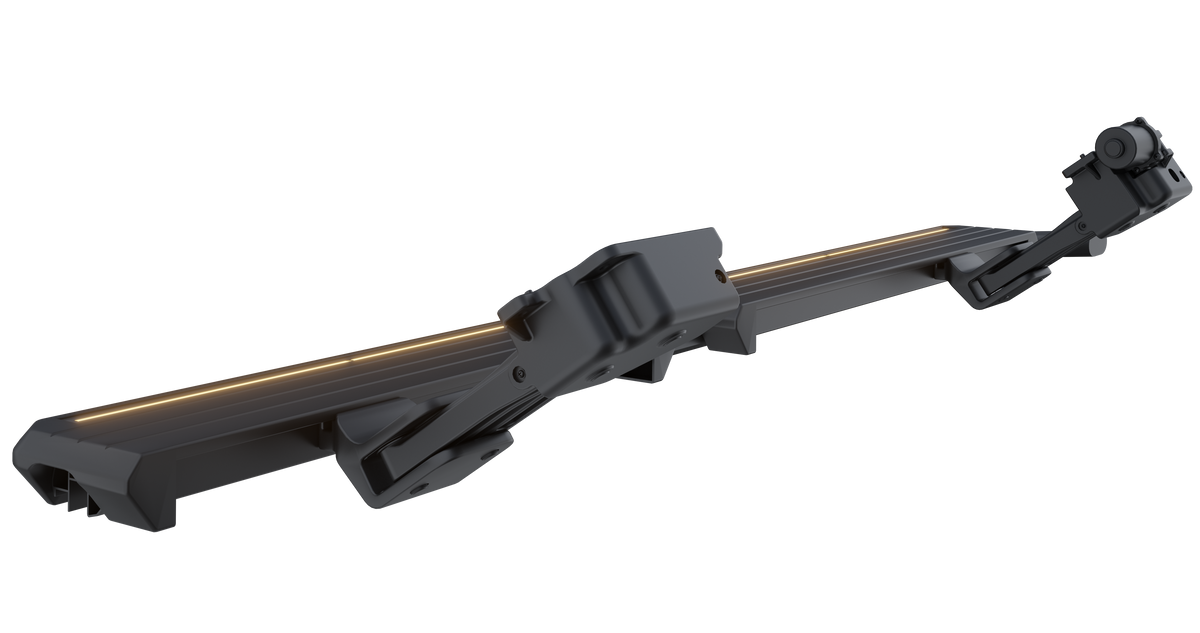

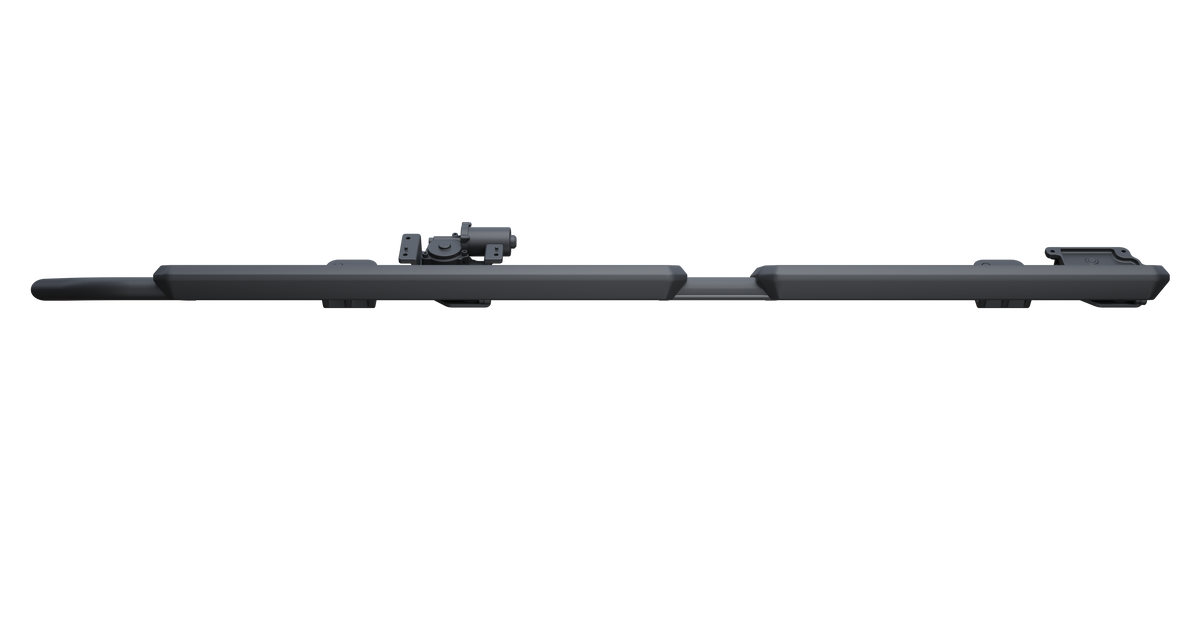

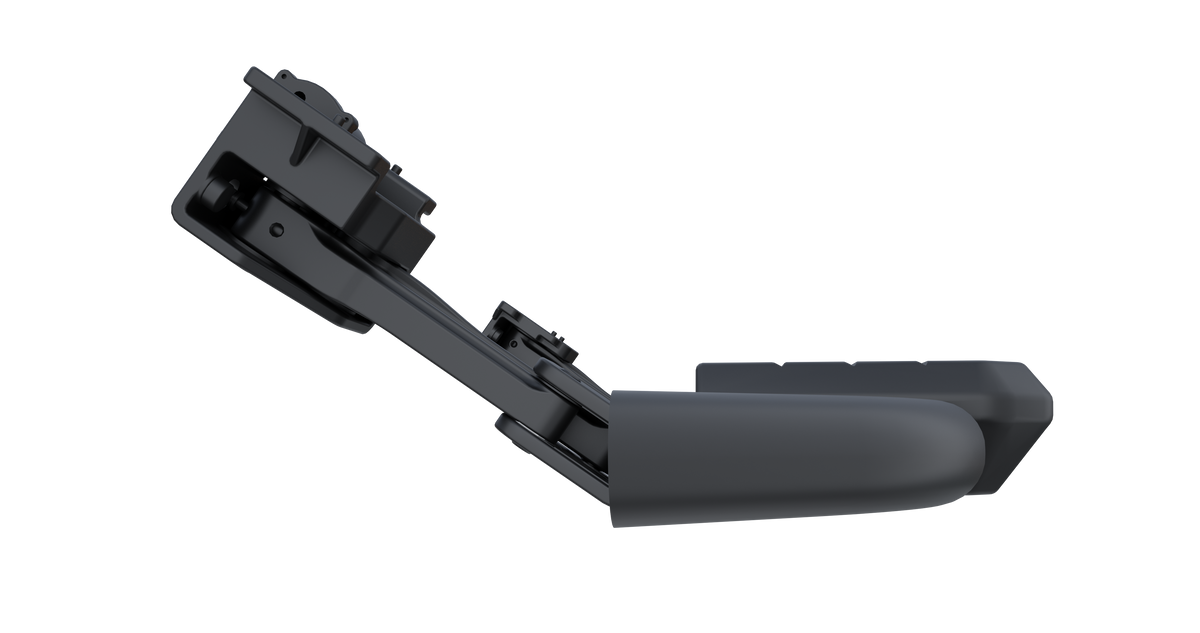

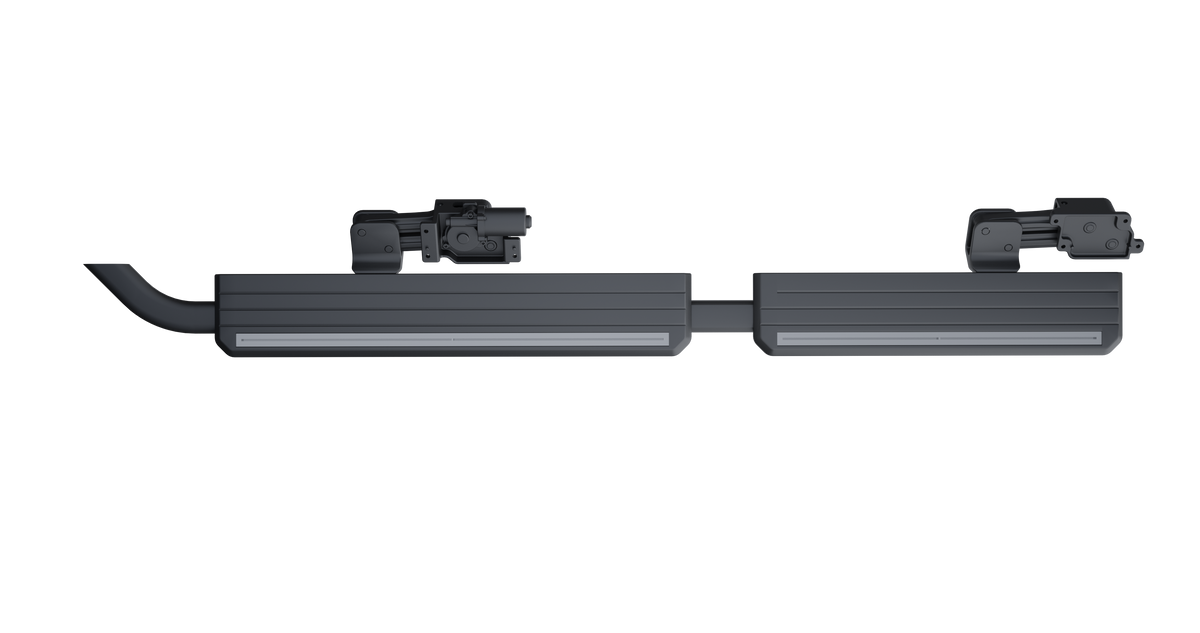

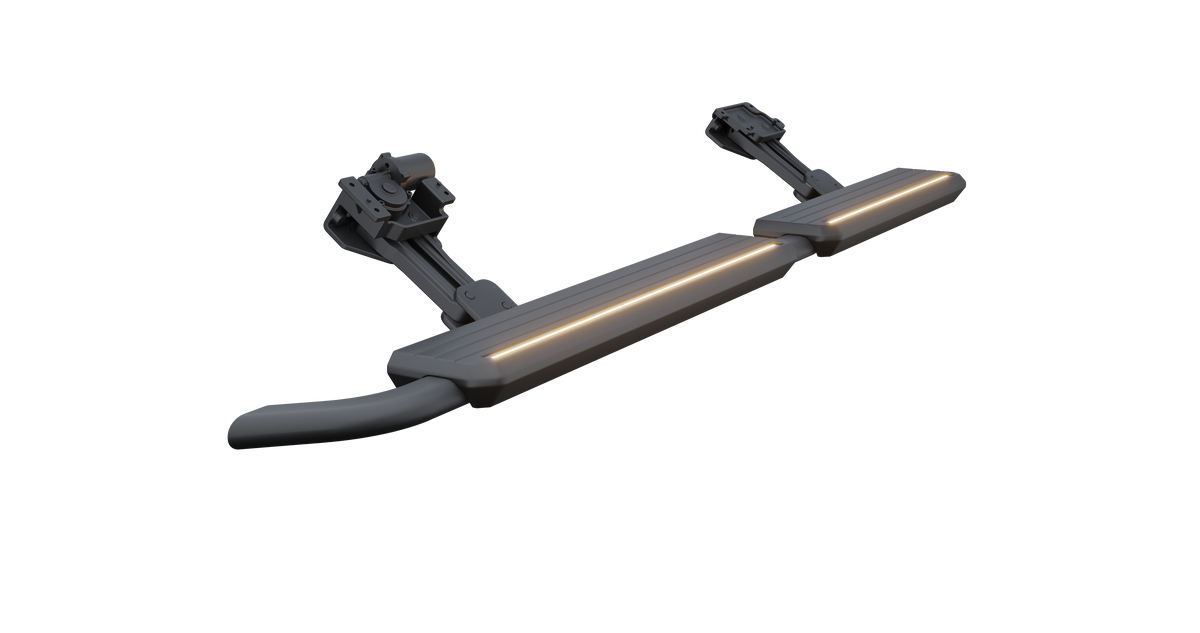

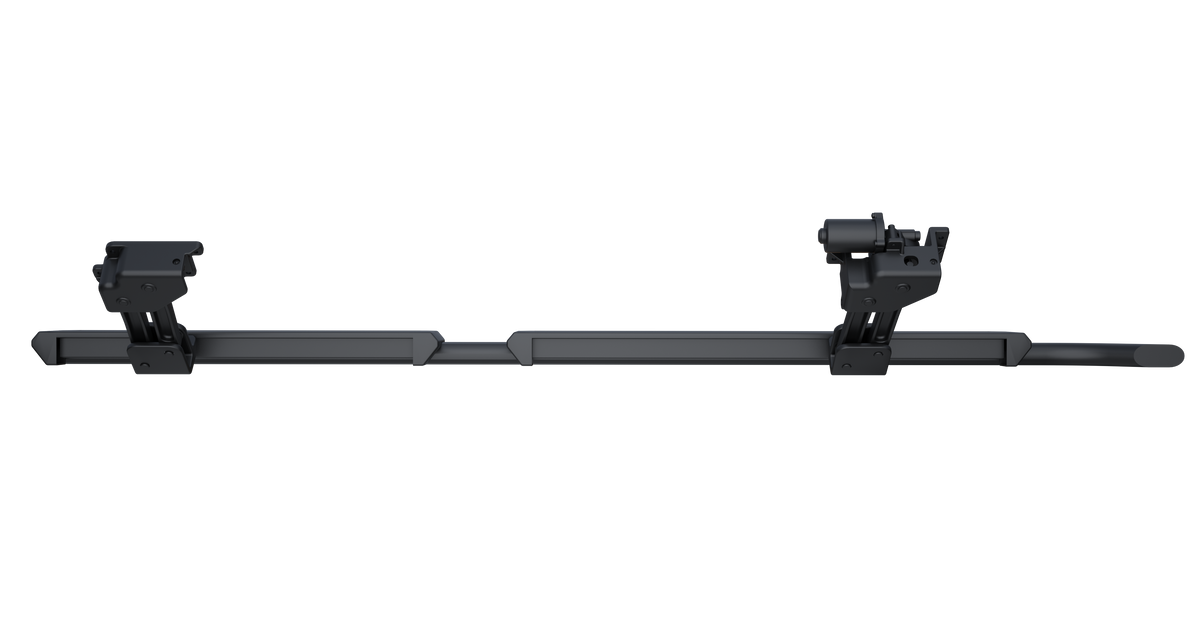

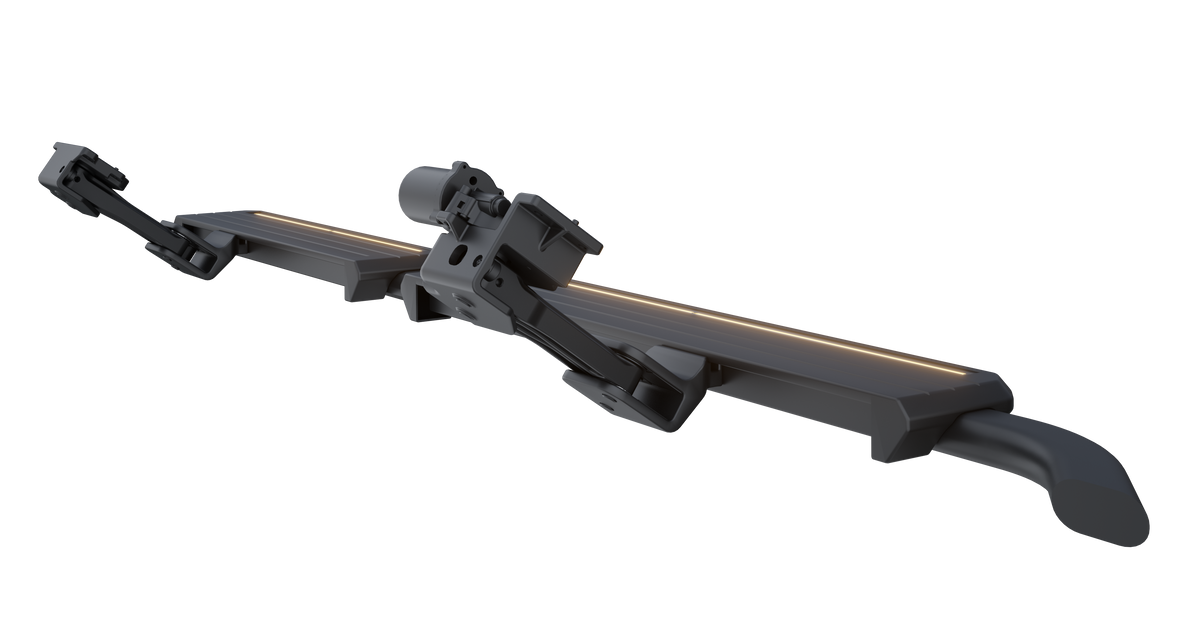

Side Steps
After a million units deployed globally, we're a step above the rest. Backed by more than a decade of refinement, GRADA side steps deliver powered access with precision. Automatic swing-out deployment provides smooth, controlled entry and exit, while integrated LED lighting improves visibility in low light. Engineered for seamless vehicle-specific mounting and clean power integration, GRADA is built to handle trailheads without compromise.
Specifications
| Length | 71.65 in - 83.46 in |
| Width | 11.34 in - 11.81 in |
| Thickness | 5.71 in - 9.96 in |
| Weight | 76.06 lbs - 119.05 lbs |
| Material | Aluminum Alloy + Engineered Plastic + LED Lights |
| Max Load Capacity | 661.39 lbs |
| Extended Distance | 5.91 in |
| Working Voltage | 9-16V |
| Maximum Current | 15A |
| Pedal Size | Length 71.65 in x Width 11.42 in x Thickness 6.10 in |
| Weight | 76.06 lbs |
| Material | Aluminum Alloy + Engineered Plastic + LED Lights |
| Max Load Capacity | 661.39 lbs |
| Extended Distance | 5.91 in |
| Working Voltage | 9-16V |
| Maximum Current | 15A |
| Pedal Size | Length 71.85 in x Width 11.34 in x Thickness 8.86 in |
| Weight | 119.05 lbs |
| Material | Aluminum Alloy + Engineered Plastic + LED Lights |
| Max Load Capacity | 661.39 lbs |
| Extended Distance | 5.91 in |
| Working Voltage | 9-16V |
| Maximum Current | 15A |
| Pedal Size | Length 83.39 in x Width 11.57 in x Thickness 7.56 in |
| Weight | 95.90 lbs |
| Material | Aluminum Alloy + Engineered Plastic + LED Lights |
| Max Load Capacity | 661.39 lbs |
| Extended Distance | 5.91 in |
| Working Voltage | 9-16V |
| Maximum Current | 15A |
| Pedal Size | Length 83.35 in x Width 11.42 in x Thickness 7.17 in |
| Weight | 95.90 lbs |
| Material | Aluminum Alloy + Engineered Plastic + LED Lights |
| Max Load Capacity | 661.39 lbs |
| Extended Distance | 5.91 in |
| Working Voltage | 9-16V |
| Maximum Current | 15A |
| Pedal Size | Length 83.35 in x Width 11.42 in x Thickness 9.96 in |
| Weight | 94.80 lbs |
| Material | Aluminum Alloy + Engineered Plastic + LED Lights |
| Max Load Capacity | 661.39 lbs |
| Extended Distance | 5.91 in |
| Working Voltage | 9-16V |
| Maximum Current | 15A |
| Pedal Size | Length 83.35 in x Width 11.42 in x Thickness 7.95 in |
| Weight | 87.08 lbs |
| Material | Aluminum Alloy + Engineered Plastic + LED Lights |
| Max Load Capacity | 661.39 lbs |
| Extended Distance | 5.91 in |
| Working Voltage | 9-16V |
| Maximum Current | 15A |
| Pedal Size | Length 82.68 in x Width 11.81 in x Thickness 9.25 in |
| Weight | 104.72 lbs |
| Material | Aluminum Alloy + Engineered Plastic + LED Lights |
| Max Load Capacity | 661.39 lbs |
| Extended Distance | 5.91 in |
| Working Voltage | 9-16V |
| Maximum Current | 15A |
| Pedal Size | Length 83.46 in x Width 11.42 in x Thickness 6.10 in |
| Weight | 79.37 lbs |
| Material | Aluminum Alloy + Engineered Plastic + LED Lights |
| Max Load Capacity | 661.39 lbs |
| Extended Distance | 5.91 in |
| Working Voltage | 9-16V |
| Maximum Current | 15A |
| Pedal Size | Length 71.65 in x Width 11.42 in x Thickness 5.71 in |
| Weight | 82.67 lbs |
| Material | Aluminum Alloy + Engineered Plastic + LED Lights |
| Max Load Capacity | 661.39 lbs |
| Extended Distance | 5.91 in |
| Working Voltage | 9-16V |
| Maximum Current | 15A |
Warranty
Mohab products are backed by our comprehensive 3-year warranty*, giving you complete peace of mind on every adventure. This full coverage protects against defects in materials and workmanship, including the durable weatherproof hardwall structure, mounting hardware, and all integrated components. Dealer install labor warranties are 1-year but are ultimately at the discretion of the installing dealer.
If you experience an issue covered under warranty, submit a claim in the Owner's page or visit an authorized dealer to start a claim.
* Excludes LED lights, ALTUS cameras and display screen and RIVO Water Tank pump which offer a 2-year warranty.
Features
Quiet, Automatic Deployment
Whisper quiet patented, automatic orbiting deployment on door opening.
LED Lighting
Automatic, bright up lighting makes ingress and egress easier and safer.
No-Drill Installation
Vehicle-specific mounting integrates with factory frame points and power systems. Professional installation required.
Aluminum Alloy Construction
Strong, lightweight construction handles larger weight capacities without jeopardizing body or frame integrity.
Anti-Pinch Engineering
Prevents inadvertently catching of feet or hands during open or close.
Built for Extremes
Engineered for all seasons, able to handle temperatures from -40 to 230 degrees F.
